Arduino Relay Tooth

By -

Relay Tooth




Components Required

  • Arduino Mega 2560 & Genuino Mega 2560(any Arduino board can be used) - 1
  • HC-06 Bluetooth Module - 1
  • Relay (generic) - 1

About this projects

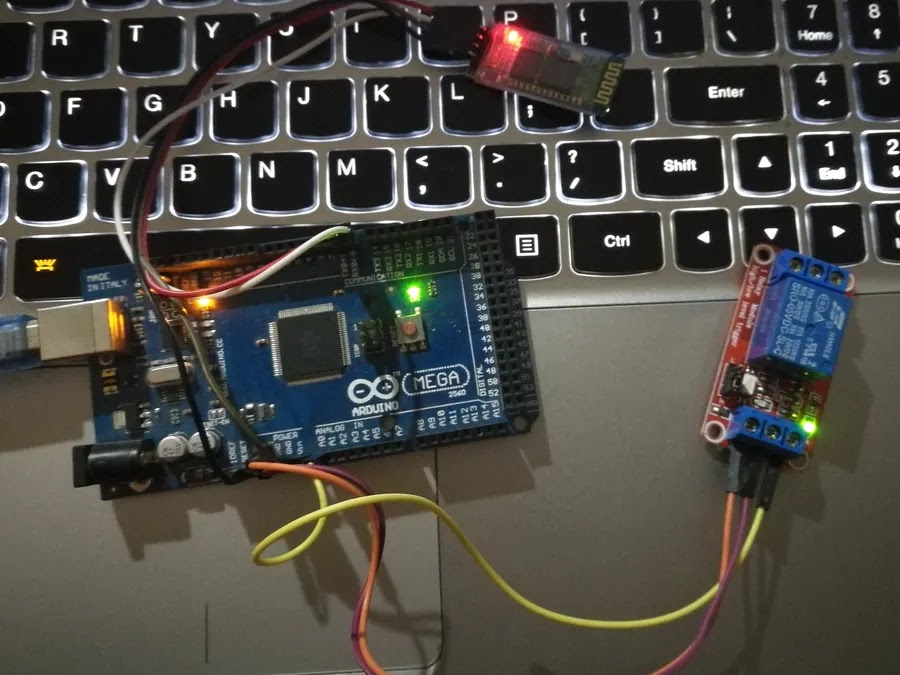

This project allows to control AC electrical equipment via Bluetooth. And I use Relay to control electrical equipment by getting the signal from phone Bluetooth.
